A COMPLETE WATER MIST FIRE SUPPRESSION SYSTEM FOR VEHICLE ENGINES
Compact Line vehicle fire suppression
A COMPLETE PRE-ENGINEERED SYSTEMDesigned to protect vehicle engines from fire
Everything you need together in one box

FULLY AUTOMATICAutomatically detects and suppresses fire
No power supply required for activation

UNECE R107 and RISE APPROVEDTested and Certified according to UNECE R107 Standards for passenger bus engines

ULTRA-COMPACTThe most compact system to obtain the UNECE certification
Protects engine compartments of 4m3 with just 4 L of agent
downloads
  • Download
    COMPACT LINE Power Generator
    Last update: Sep 22, 2023
    Available in: en
  • Download
    COMPACT LINE Port Machinery
    Last update: Sep 22, 2023
    Available in: en
  • Download
    COMPACT LINE Consolidated vehicles
    Last update: Sep 22, 2023
    Available in: en
  • Download
    COMPACT LINE Bus
    Last update: Sep 22, 2023
    Overview of the benefits and key applications of the Compact Line bus engine fire suppression system
    Available in: en
Choose Your Detection System

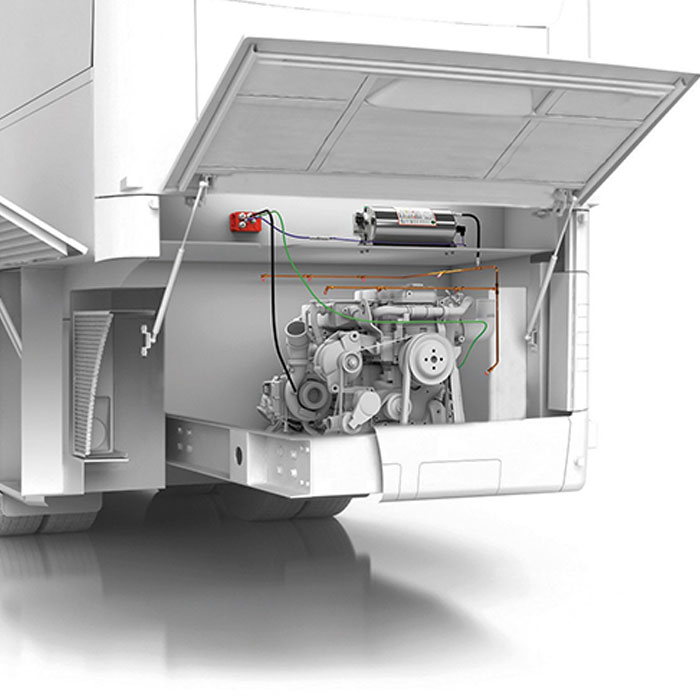

Electronic Linear Heat Detection (LHD)
Electronic Linear Heat DetectionLearn more

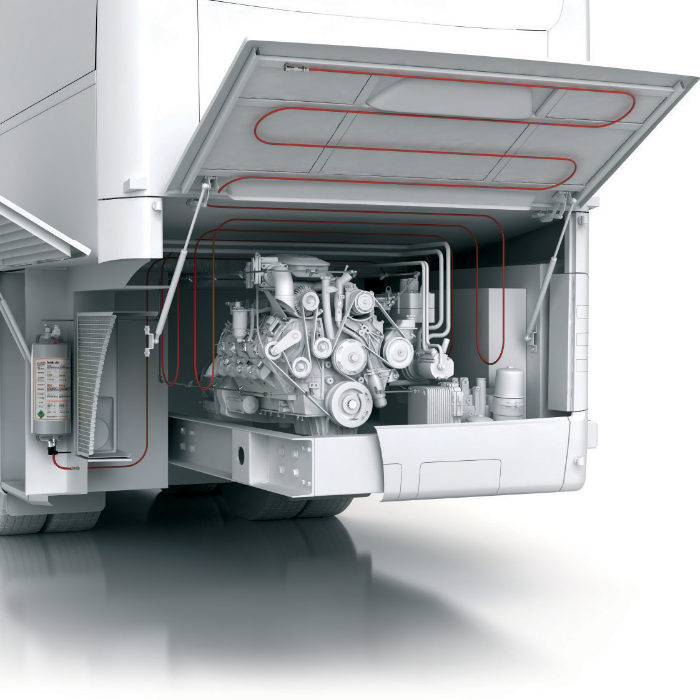

Pneumatic Detection
Pneumatic DetectionLearn more
videos
EXTINGUISHING AGENT
Vehicle protection

  • Liquid water-based agent (water) with glycol-free antifreeze

  • Low freezing point

  • Developed to suppress engine fires – rapidly removes heat and prevents reignition

  • Long Life Suppression Agent (10 years)

  • No chemicals and fluorine-free

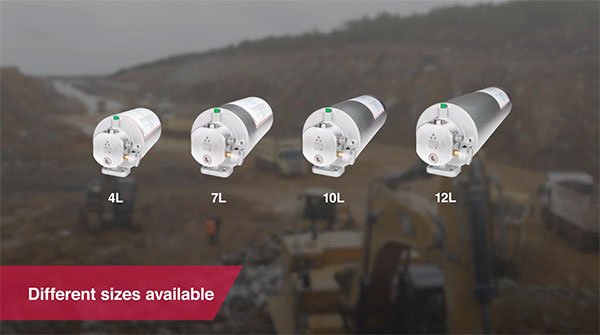

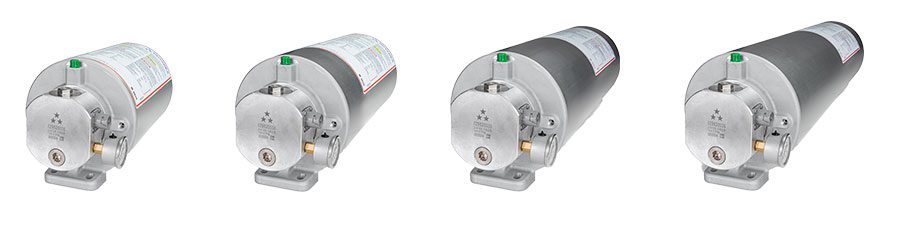

A CHOICE OF COMPACT LINE CYLINDER SIZES
Vehicle protection

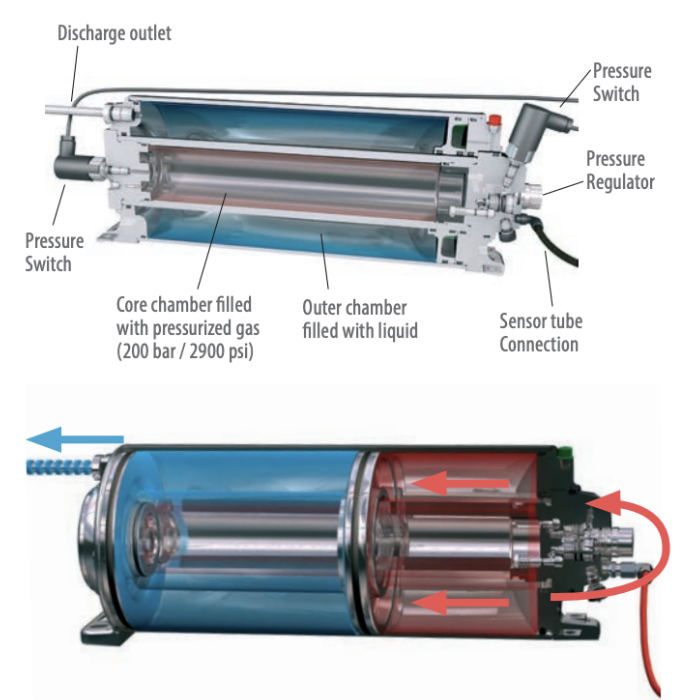

Patented Dual-Chamber Cylinder Technology
Patented Dual Chamber
  • Dual-chamber = Extinguishing liquid and pressurized nitrogen gas are in separate chambers
  • When activated, the pressurized gas is released into the outer chamber thrusting the piston
  • The piston pushes the liquid out through the discharge line
  • A built-in pressure regulator ensures a constant and sustained discharge
  • Robust design to withstand vibrations
  • Superior safety and leak prevention
  • Operates in any orientation (upside down, vertically, horizontally)
  • The piston pushes the liquid agent out through the discharge line
Certification
Firetec technology is approved and certified compliant with recognized international norms. Tested and certified according to UNECE R107 and AS5062, Standards for passenger bus engines and mining vehicles.
compact line certifications
applications
COMPACT LINE Engine Water Mist Protection Systems
