A COMPLETE PRE-ENGINEERED SYSTEMDesigned to protect high risk machinery or equipment and special applications
Everything you need together in one box
FULLY AUTOMATICAutomatically detects and suppresses fire
No power supply required
FAST DETECTIONInstalled directly inside individual equipment - closer to where a fire could potentially break out
PROVEN TECHNOLOGYUL and FM approved systems available
Already protecting thousands of installations worldwide
Rotarex FireDETEC® systems use a pneumatic detection tube that reliably detects and releases teh discharge of the extinguishing agent using pneumatic technology. It is more flexible, space efficient and cost effective versus alternative mechanical or electromechanical systems.

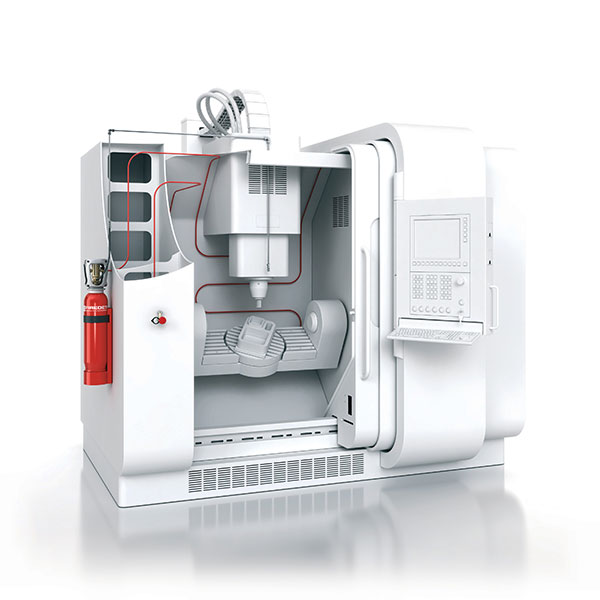

CNC Machines

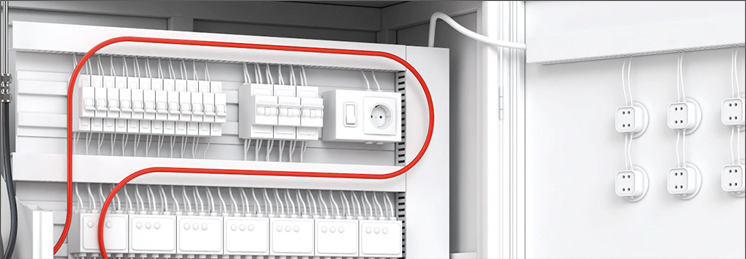

1. Quick & Easy installation directly inside electrical cabinets:
The flexible FireDETEC® pneumatic detection tube is easily installed directly inside the enclosure, close to the critical components – closer to where a fire could break out. When in service, the pneumatic detection tube is pressurized with dry nitrogen at 16 bar.

2. Early fire detection:
If a fire breaks out, the heat of the fire or flames impingement causes the pressurized pneumatic tube to burst at the hottest spot

3. Instant suppression:
The sudden tube depressurization actuates the special pressure differential valve and instantly floods the entire enclosure with extinguishing agent. The fire is quickly suppressed just moments after it began... minimizing damage and downtime.

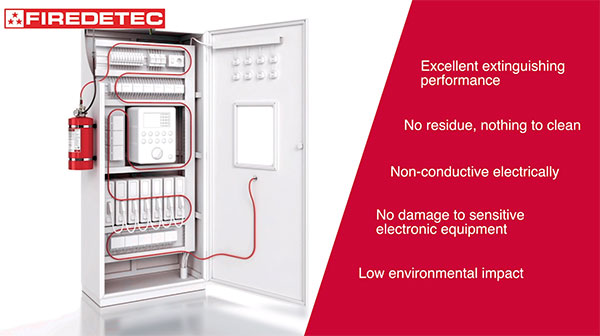

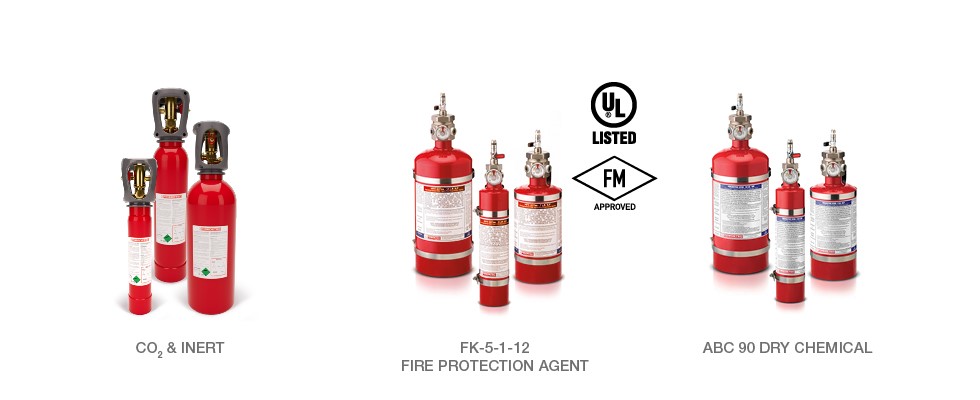

Pick your choice out of 3 different suppression agents

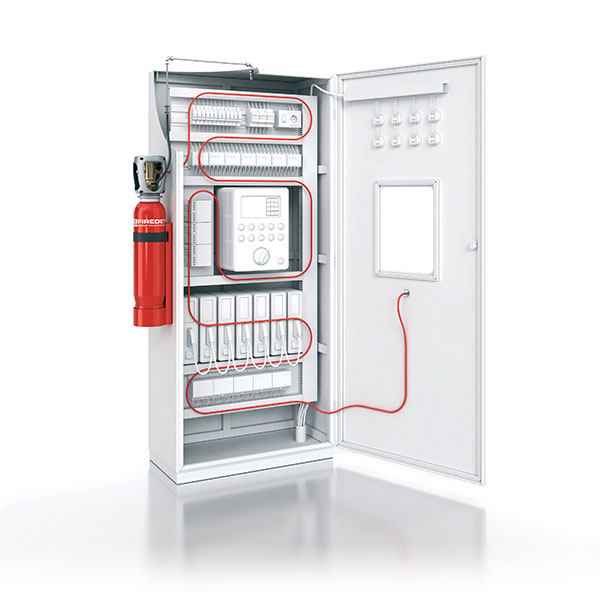

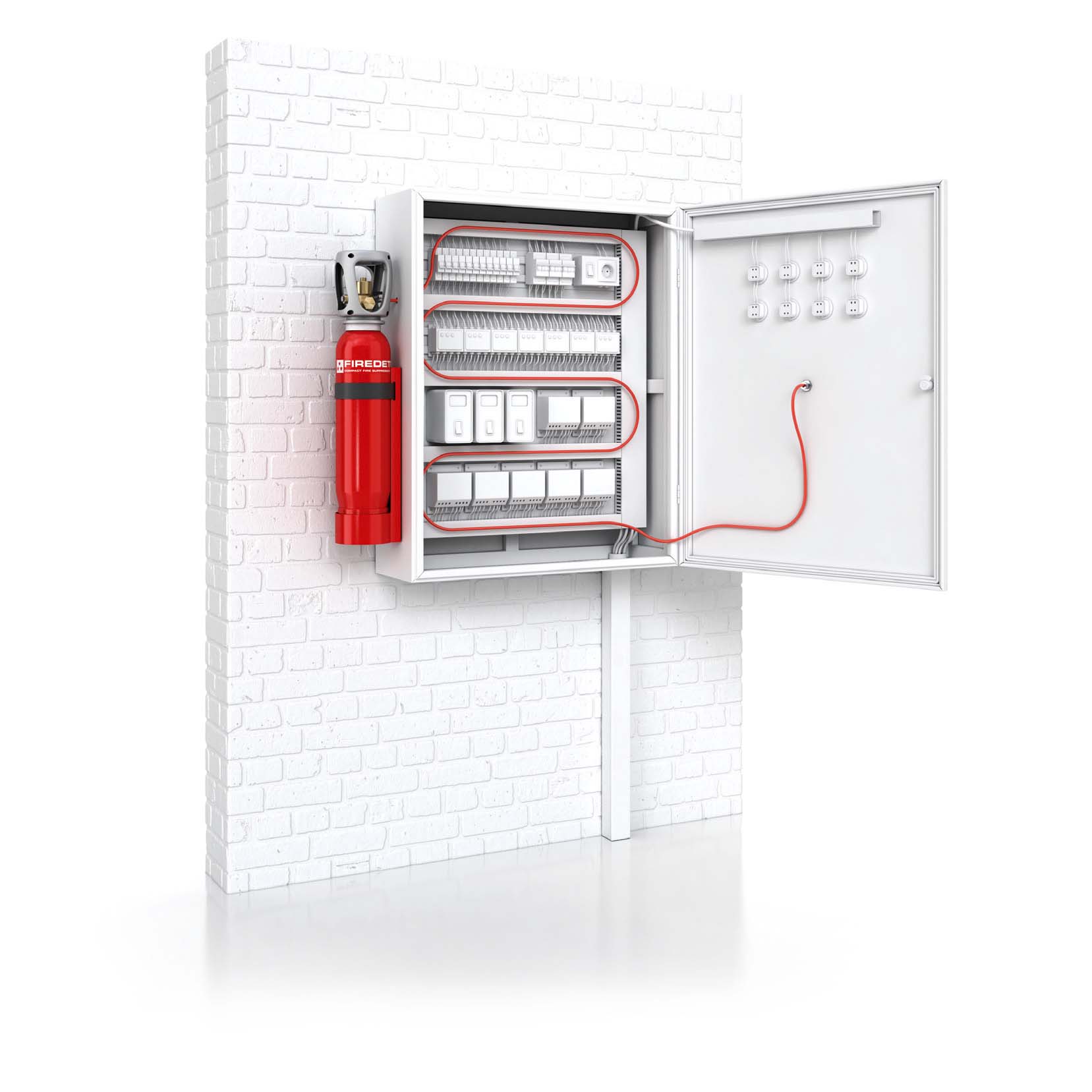

Electrical cabinet
FireDETEC Local Application Fire Suppression Systems
