TRIPLESTAR®: COMMERCIAL KITCHEN FIRE SUPPRESSION SYSTEM

Triplestar kitchen

A COMPLETE PRE-ENGINEERED AND ENGINEERED SYSTEM

Designed to protect Commercial Kitchens
Everything you need together in one box

FULLY AUTOMATIC

Automatically detects and suppresses fire
No power supply required

FAST DETECTION

Protects cooking zones – directly above where a fire can break out
Fast response
Fully operational 24/7

PROVEN TECHNOLOGY

Already protecting thousands of installations worldwide
Quick installation and simple maintenance steps
downloads
  • Download
    Brochure TRIPLESTAR Kitchen Systems
    Last update: Sep 22, 2023
    Overview of the benefits and key applications of the TRIPLESTAR commercial kitchen fire suppression system
    Available in: en

THE FIREDETEC® DIFFERENCE

Rotarex FireDETEC® systems use a FireDETEC pneumatic detection tube that reliably detects and actuates release of the extinguishing agent using pneumatic technology. It is more flexible, space efficient and cost effective versus alternative electromechanical systems.
Triplestar kitchen fire suppression system

1. Quick & Easy installation directly above high-risk cooking areas:

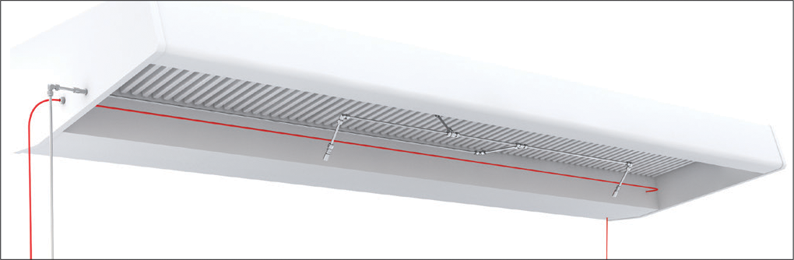

The flexible FireDETEC® pneumatic tube is easily installed directly into the extraction duct - right above cooking appliances. When in service, the penumatic tube is pressurized with a dry nitrogen at 16 bar. Pressurization improves the detection functionality.


2. Early fire detection:
If a fire breaks out, the heat will burst the pneumatic detection tube at a near spot (approx. 175 °C)


3. Instant suppression:
The sudden pressure drop in the tube will actuate the special pressure differential valve. The system will instantly flood the cooking area with Class F/K extinguishing agent. The fire can be quickly suppressed shortly after the outbreak, minimizing damage

EFFECTIVE PROVEN FIRE PROTECTION FOR KITCHENS OF ALL SIZES

Triplestar kitchen fire suppression system

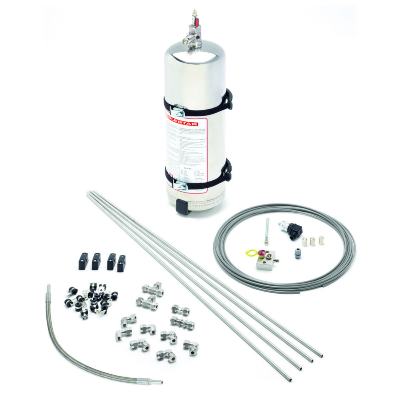

EVERYTHING YOU NEED TOGETHER IN ONE BOX


  • Pre-engineered and engineered system: no preliminary calculation needed
  • Pre-defined components quantities to fit on most intallations
  • Order one article and get everything you need in one box!
applications

A system for all kitchen sizes

SMALL AND MEDIUM KITCHENS

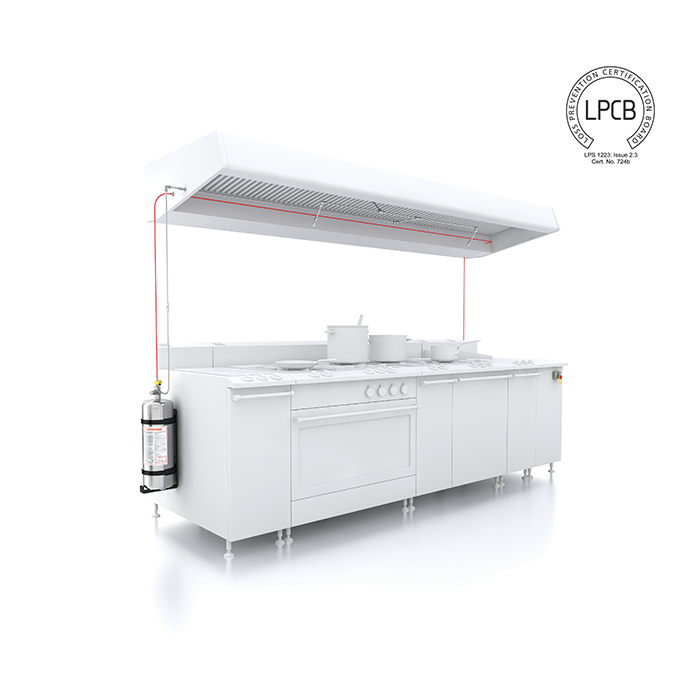

Pre-engineered TRIPLESTAR® commercial kitchen fire suppression system ideal for small- and medium-sized commercial kitchen. 9 L TRIPLESTAR system can protect 3 zones (ex: 2 cooking open applicances & 1 hood)
Triplestar kitchen fire suppression system
Triplestar kitchen fire suppression system

LARGE KITCHENS

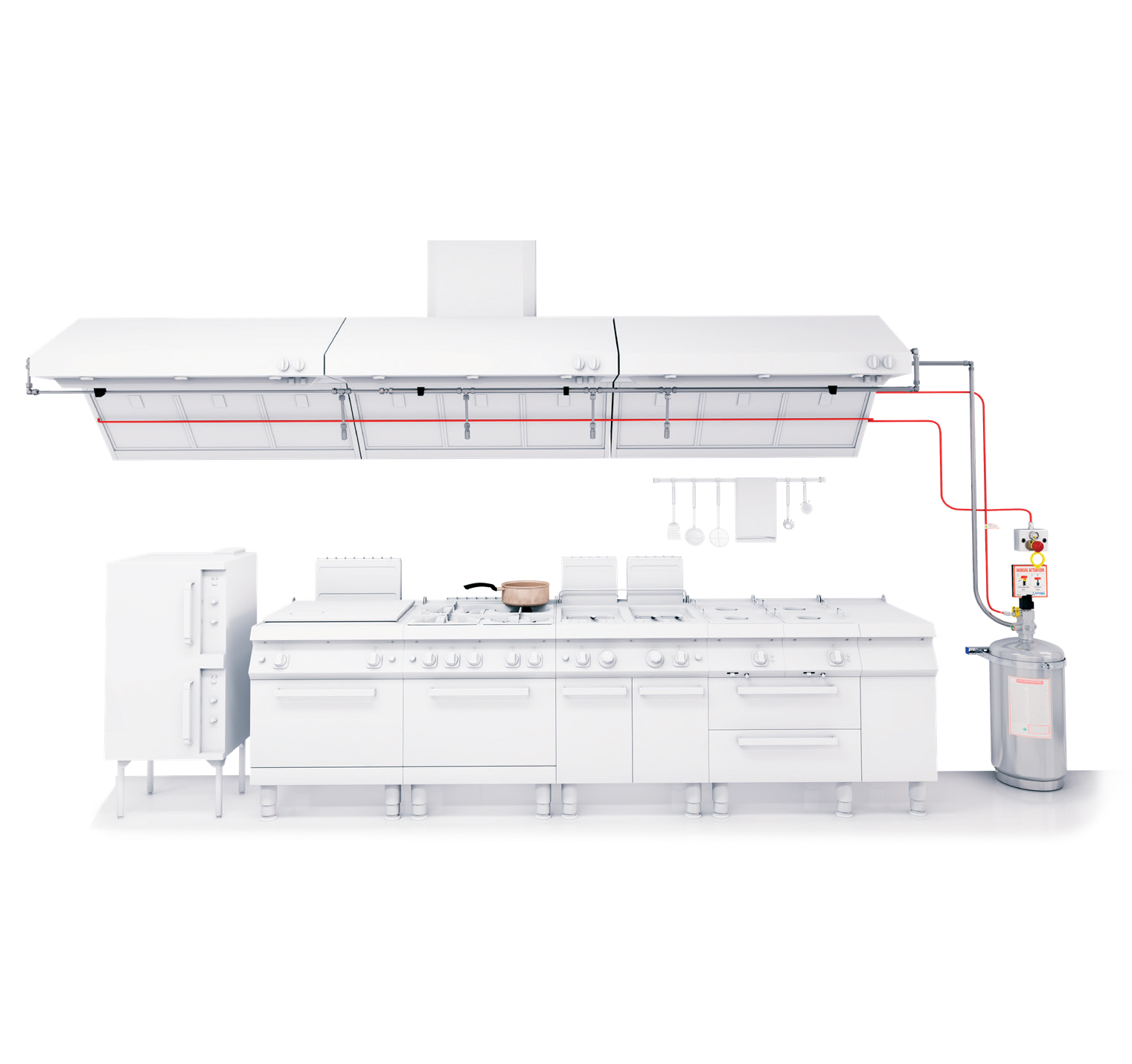

Engineered TRIPLESTAR commercial kitchen fire suppression system ideal for large-sized commercial kitchen. 16 L TRIPLESTAR® system can protect 4-6 zones (ex: 5 cooking open applicances & 1 hood). 25 L TRIPLESTAR® system can protect 7-9 zones (ex: 8 cooking open applicances & 1 hood).
